We propose a vision-LLM framework for automating development and deployment of computer vision solutions for pre-defined or custom-defined tasks. A foundational layer is proposed with a code-LLM AI orchestrator self-trained with reinforcement learning to create Python code based on its understanding of a novel user-defined task, together with APIs, documentation and usage notes of existing task-specific AI models. Zero-shot abilities in specific domains are obtained through foundational vision-language models trained at a low compute expense leveraging existing computer vision models and datasets. An engine layer is proposed which comprises of several task-specific vision-language engines which can be compositionally utilized. An application-specific layer is proposed to improve performance in customer-specific scenarios, using novel LLM-guided data augmentation and question decomposition, besides standard fine-tuning tools. We demonstrate a range of applications including visual AI assistance, visual conversation, law enforcement, mobility, medical image reasoning and remote sensing.

1. Introduction

Computer vision is a key technology for NEC in a wide range of applications across health, finance, retail, mobility, remote sensing and safety. Our broad aim is to enable a dual strategy for NEC:

Consider a typical computer vision solution, which requires customized effort through a workflow resembling the following:

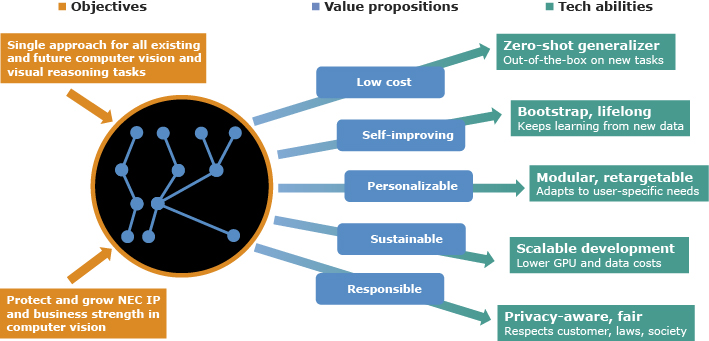

A vision-LLM requires different considerations from a traditional LLM, since visual data is not amenable to long-range reasoning, self-supervision is challenging and alignment with language is non-trivial. Our goal is to develop a low-cost, self-improving, personalizable, sustainable and responsible vision-LLM (Fig. 1). A key philosophy is for our vision-LLM to achieve a high level of physical grounding at minimal training cost, which we realize through design choices such as the agent-engine layers, as well as the use of code-LLMs and pretrained computer vision models. Our vision-LLM is distinct from a multimodal LLM like GPT-4V¹⁾, where our layered approach is more modular and efficient.

2. Summary of Architecture

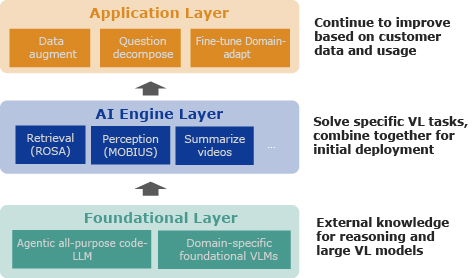

A summary of our architecture is shown in Fig. 2. Our framework is comprised of three layers. First, a foundational layer with an LLM orchestrator that plans based on available code and documentation how to solve a new task. This layer also consists of domain-specific foundational models that are trained on very large datasets with zero-shot vision-language (VL) generalization ability. Second, an engine layer with VL models for specific tasks like image retrieval or object detection. Third, an application layer where tools like augmentation, decomposition, prompting and fine-tuning are available to adapt to customer-specific data or usage. We posit that such an approach allows for both competitive differentiation and market penetration.

3. Tech Details and Results

We outline how to realize the above architecture and key benchmark results.

3.1 Foundational layer

Our framework is based on an LLM orchestrator that generates a plan to accomplish new tasks using available tools, as well as large pre-trained domain-specific foundational models.

3.1.1 Agentic Vision-LLM Orchestrator

Solving a complex, novel task requires interleaving multiple steps of reasoning and perception, which must be composed with planning, backtracking, and sequential decisions. Such tasks are the next frontier challenge for intelligent systems, which we approach through foundational model-driven AI agents. We propose an LLM orchestrator that is given access to a battery of available tools and pretrained models, much like a human engineer. This allows the agent to solve tasks beyond the ability of the underlying LLM. For example, while LLMs may be prone to logical inconsistencies and poor arithmetic, an LLM-driven agent can delegate logical reasoning to a logic engine and arithmetic to a calculator. By allowing an agent to synthesize programs and invoke APIs, we can combine arbitrary tools to solve novel tasks.

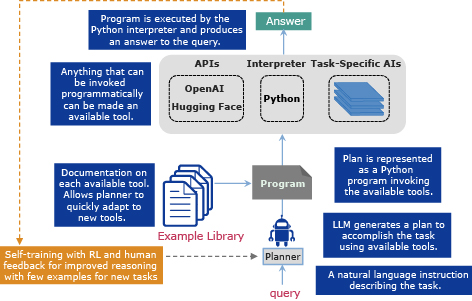

At the core of the agentic architecture (Fig. 3) is an LLM that acts as a planner. Given a natural language instruction, the goal of the planner is to write a plan that accomplishes the task using available tools. The plan is represented as a formal program that invokes the available tools. To understand what tools are available and how it can use those tools, the planner consults a library of documentation and examples. This allows the planner to quickly adapt when new tools are added by reading their documentation. In principle, anything that can be programmatically invoked can be used as a tool by the planner using the code interpreter. As a starting point, we provide an environment that has access to task-specific AIs and third-party APIs. The plan (represented as a program) is then executed in the environment to produce an answer to the query.

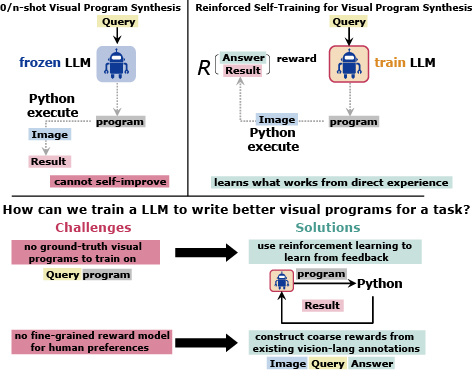

A problem with frozen off-the-shelf LLMs as planners is that they lack experience with writing plans and can fail to understand nuances of tool use from documentation alone. But training an LLM to act as a planner requires training data, but no large-scale training data is available for writing programs that solve visual tasks. Our key insight is learning from feedback using reinforcement learning. We first design an environment in which the planner can write and execute programs. We provide the planner with an API through which it can invoke state of the art task-specific models. We then apply iterated reinforced self-training by using existing annotations for a vision-language task (Fig. 4). For example, given a dataset of image v, ground truth y and query q, we feed q into the planner, then run the generated program p on the image v. We compare the result of executing the program with the ground-truth y to obtain a coarse reward signal, then apply a reward-weighted behavioral cloning loss. The trained planner outperforms a frozen planner based on ChatGPT by as much as 10%, 4%, and 10% on compositional variants of question answering, object detection, and image-text matching.

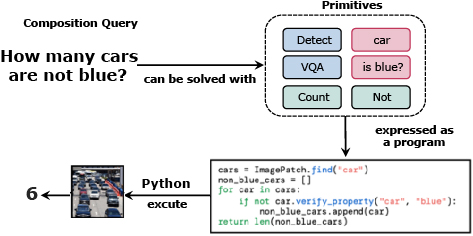

As an example for computer vision, consider a novel visual task that is difficult for end-to-end systems (Fig. 5). It can be solved by decomposition into primitive visual tasks (object detection, image-text matching) and logic, for which task-specific engines exist. The planner writes a Python program that controls the task-specific AIs through an API we provide to obtain necessary intermediate information about the image, then combines the acquired information with logic expressed in code to arrive at an answer.

Our AI orchestrator has many benefits:

3.1.2 Domain Foundational VL-Model

Our architecture can incorporate any existing vision model, but sometimes one may not exist in our library. Thus, we also propose foundational VL models (FVLM) in specific domains trained with a large amount of data to easily generalize to new tasks. Our key insight is that many task-specific models and datasets already exist, which can be leveraged to train FVLM at low compute expense.

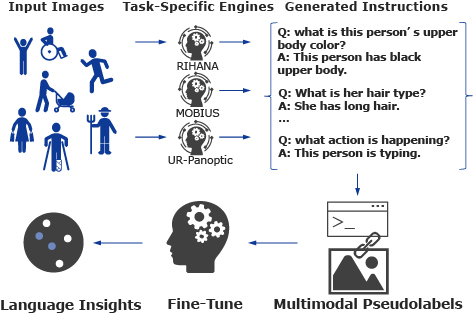

Examples of domains where we develop an FVLM are mobility and human analysis. Our mobility FVLM is developed using several large-scale autonomous driving datasets, along with the outputs of several object detection, segmentation, captioning and other models applied to them. Our human FVLM is trained using a collection of datasets and models for human attribute analysis, action recognition and human-object interaction. Fig. 6 shows the overall pipeline for training our domain FVLM. Despite being significantly smaller in size (7B parameters), this new model improves performance by 0.5% compared to an existing closed model with 175B parameters.

3.2 Engine layer

The engine layer is comprised of a large zoo of AI models, standard tools such as finetuning and domain adaptation, together with documentation and usage examples, which have been developed for specific tasks like image retrieval, object detection, medical imaging, or remote sensing.

3.2.1 Vision-language retrieval

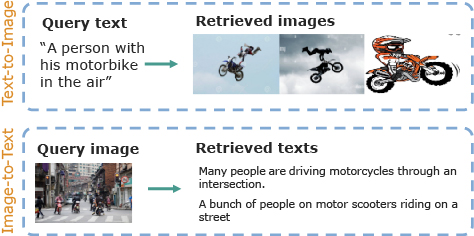

Our proposed model ROSA²⁾ is a data-efficient neural network that effectively aligns image and text modalities, which enables accurate image-to-text and text-to-image retrieval. In a zero-shot evaluation benchmark (Fig. 7), our model outperforms the state-of-the-art by 3% in Rank-1 text retrieval performance although competing models use 30 times more compute and require 100 times larger training datasets.

3.2.2 Open-world scene understanding

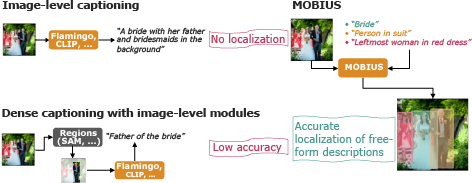

Another engine is our open-vocabulary object detector MOBIUS³⁾⁴⁾ (Fig. 8), which can localize rare categories and objects described by free-form text descriptions. On a public open-vocabulary benchmark, where detectors are tasked to detect unseen categories without box annotations during training, MOBIUS outperforms the competition by 4.3% average precision (AP) points.

3.3 Application layer

While our foundational and engine layers already enable deployment of solutions in customer domains, the application layer will provide tools to achieve personalized solutions based on target data and usage. Specifically, we propose an approach to leverage a small amount of target data and an approach to decompose application-specific usage into easier to reason atomic segments.

3.3.1 Data augmentation

There is often insufficient data available for specialized tasks or domains. While collecting more annotations can be challenging, unlabeled images are often available. We propose SelTDA⁵⁾ (Self-Taught Data Augmentation), a strategy which uses a generative vision-language model to produce synthetic data. Training with SelTDA results in improvements of up to 9.87%, 6.38%, and 29.81% on robustness, generalization, and reasoning respectively.

3.3.2 Question decomposition

Domain-specific tasks or those with specialized reasoning patterns are challenging for generalist models, especially in realistic data-scarce settings. We propose selective question decomposition⁶⁾ to improve generalist models on such tasks through dialogue that surfaces relevant context without extra data. We achieve improvements of up to 26% on medical datasets and correct up to 20% of prediction errors using decompositions.

4. Applications

We now discuss several applications for our foundational vision-LLM.

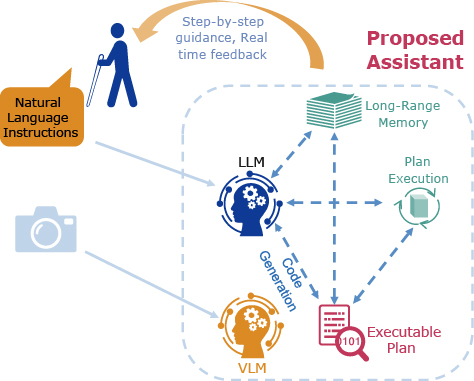

AI Visual Assistant: The vision-LLM yields outputs grounded in images or videos, while the orchestration through code allows a transparent step-by-step reasoning (Fig. 9). This can be used to aid the visually impaired, allowing them to find objects, navigate safely or perform other tasks with a language interface. This application is being validated with an NEC-X startup.

Visual Conversation: The vision-LLM enables joint reasoning with images and text along with external knowledge, which allows question-answering or conversation in multimodal data. Our application layer tools allow improvement of 13% on the public OK-VQA benchmark for external knowledge-based language reasoning in images.

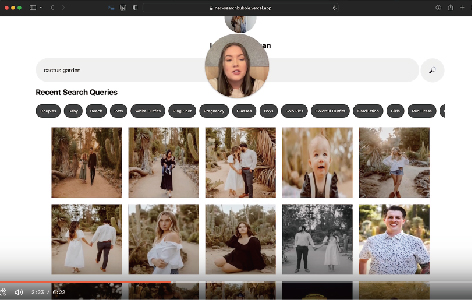

An example use-case is an NEC-X startup which seeks to improve the engagement of social media influencers with their audience by automating some interactions (Fig. 10).

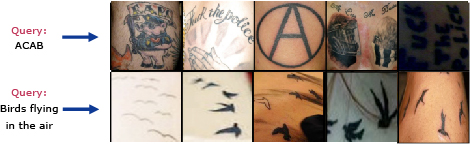

Law enforcement: The VL-retrieval engine has been used for tattoo recognition for law enforcement, which allows a human operator to interpret tattoos and find matches based on semantic meaning beyond visual similarity (Fig. 11).

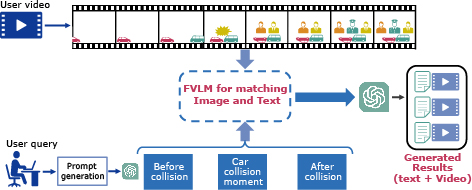

Mobility: A domain-specific FVLM for mobility scenarios has been demonstrated for automated insurance insights and summarization together with the VIR Lab at OH 2023 (Fig. 12).

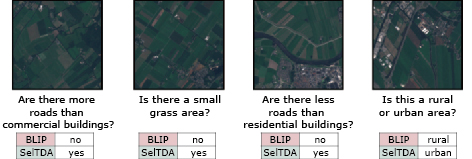

Remote Sensing: The data augmentation methods in our application layer allow a foundational VLM to answer questions in satellite images even with a small amount of data. We improve over BLIP on the RS-VQA benchmark (Fig. 13).

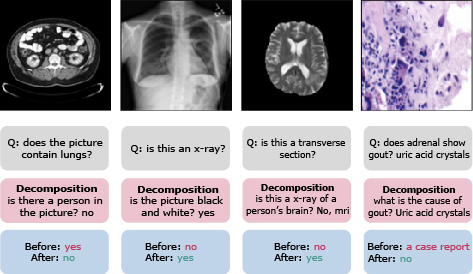

Medical Imaging: The question decomposition strategy in our application layer improves a generalist VLLM on QA over medical images, a data-scarce, domain-specific specialized task. In the public PathVQA, SLAKE and VQA-Rad benchmarks, we obtain improvements of 22%, 10% and 26% (Fig. 14).

5. Conclusion and Next Steps

We showcased an architecture for a foundational vision-LLM that will automate development and deployment of computer vision solutions by understanding customer tasks, then developing code to solve them using external knowledge and available resources. This will be supported by developing new FVLM to solve tasks in specific domains, as well as tools to rapidly customize in specific applications. Several next steps are being developed, including: (a) automatic tuning of parameters for deployment, (b) self-training to update task-specific models based on application rewards, (c) reducing hallucination and biases.
