Networks are becoming more and more complex with the advancement of virtualization technology, and the increasing burden of operating these networks is becoming an issue. However, conventional automation methods, in which instructions on monitoring and handling methods are specified by using templates, are susceptible to alterations in network requirements themselves and require additional work hours for adjustment. Against this background, the technology used in autonomous operation — by which the entire process from network construction to operation is automated based on information on user requirements (or intent) — is attracting attention. NEC started conducting the R&D of the technology used in autonomous operations in 2017 and has been making pioneering efforts since then. This paper provides an overview of NEC’s technologies used in autonomous operations and its core automated design as well as an introduction to enhanced security support.

1. Introduction

Problems, such as disruptions, with communication infrastructure are often reported and attract wide public attention. As business reforms through digitalization are being promoted in all industries, the prompt and stable provision of networks — which are the foundation of this transformation — has become an increasingly important issue. At the same time, network configurations are becoming more complex, and the burden on operations continues to increase because of the diversification of network needs and the advancement of virtualization technology. Thus, the R&D of technologies to streamline and automate operations is now being actively conducted¹⁾.

The basic process of network operation consists of three steps: monitoring, analysis, and correction²⁾. First, the network’s condition is monitored. Then the monitored condition is analyzed. Finally, if there is any abnormality, it is corrected to restore it to the normal condition. Although it may seem that these tasks can be automated after the program is created, in reality, adjustments are often necessary because of changes in the configuration of the network itself. For example, if the number of servers increases in accordance with an increase in the number of users, the added servers also need to be subject to monitoring. This means that the threshold for determining anomalies will be raised, and additional tasks will be added to deal with anomalies. It is argued that it is hard to program for all these changes in advance, and the difficulty of automation lies in maintaining automatic operation.

As mentioned earlier, the details of the operations required for network management vary in accordance with the network’s configuration. So, what is it that changes the configuration of the network? Generally speaking, when building a network, the requirements are first defined, and then based on these requirements, the design and operation methods are considered. When automating operations and maintaining automated operations, it is desirable to automatically generate configurations and operation methods based on the requirements. Intent-based and autonomous³⁾ are keywords that have been recently used to describe this kind of approach. Since 2017, we at NEC have been leading the world in the R&D of technologies for autonomous operation based on user intent. In developing these technologies, we are also focusing on maintaining the security of the target network.

In this paper, we take a look at the technology used in autonomous operation in section 2 and discuss an overview of automated design — which is the core of autonomous operation — as well as our efforts to address security issues in section 3. Then, we introduce an application example in section 4 and summarize our discussion in the conclusion in section 5.

2. Autonomous Operation Technology

NEC is currently undertaking the R&D of technology used in autonomous operation that automates the construction and maintenance of networks based on user requirements⁴⁾. By specifying the requirements, users automatically generate configurations and operational plans tailored to the networks. If the content has no problems, the network operates automatically in accordance with the generated plans. Now let’s take a look at an overview of the autonomous operation functions based on this technology.

2.1 Overview of the autonomous operation functions

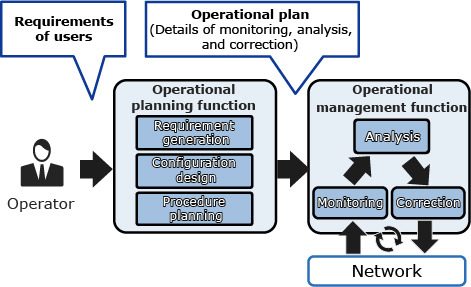

An overview of the autonomous operation functions is shown in Fig. 1. The functions of autonomous operation are divided into two types: one for operational planning and the other for operational management. The operational planning function generates operational plans from requirements, whereas the operational management function carries out the construction and operation of a network based on operational plans.

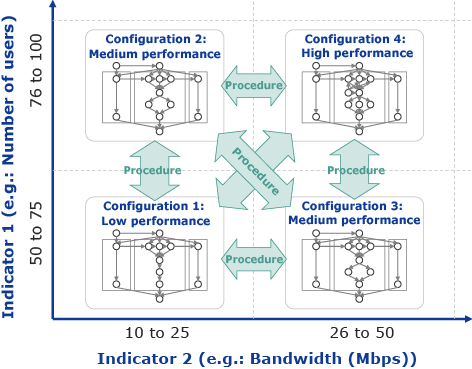

Operational plans provide information about the details of monitoring, analysis, and correction. The plans include indicators to be monitored, appropriate configurations based on the values of the indicators, and operational procedures to be executed when the configuration is changed. Fig. 2 shows a simplified example of an operational plan. Here the horizontal and vertical axes represent the indicators to be monitored. Appropriate configurations are defined for each value interval, and operational procedures for transitioning from one configuration to another are provided. The operational management function performs operations based on this information. It first monitors the network and then analyzes the results to determine the appropriate configuration according to the operational plan. If the resulting configuration differs from the current configuration, the function executes the procedures to transition from the current configuration to the appropriate configuration.

Automatic generation of requirement-based operational plans eliminates the need for adjusting operational plans in response to changing conditions, which has been a problem with conventional technology.

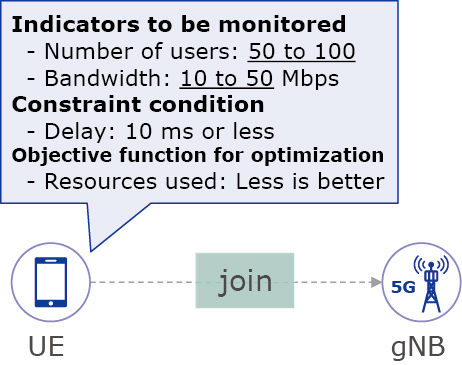

Autonomous operation has three types of requirements: functional, non-functional, and conditional (related to acceptable changes). Fig. 3 shows an example of the requirements for a radio access network (RAN). Functional requirements describe the multiple items that are needed as well as the relationships between them. Included in the non-functional requirements for each item such as performance and availability are constraint conditions (e.g., requiring that the delay be 10 ms or less) and objective functions for optimization (e.g., recommending that the amount of resources used be as small as possible). The allowed changes are then given by specifying a value range (minimum and maximum values) for the aforementioned constraints.

To generate an operational plan from requirements, the operational planning function first divides the range given as the allowed changes into an appropriate number of sections and then determines the values of the constraint conditions for each section, thereby generating requirements with clear values. Based on these requirements, this function designs the network configuration for each section⁵⁾ and finally generates migration procedures for each set of network configurations⁶⁾. The items — for which the ranges are given as allowable changes — are elements that can trigger configuration changes during operation and are therefore the indicators to be monitored. For this reason, functions to monitor these indicators are also designed together with the network configuration.

Among the technologies that constitute the operational planning function, the core technology is the one that automatically designs the network configuration for each section. This technology used for automated design is discussed in section 3.

3. Overview of Automated Design and Security Measures

3.1 Automated design

The technology used for automated design is one that automatically designs specific network configurations in accordance with requirements. Among a vast number of candidate configurations for the network that may meet the requirements, this technology uses artificial intelligence (AI) to rapidly searches for a valid configuration. During the design process, step by step, the requirements become more and more concrete. At each step of this refinement process, various items — such as the server models to be used and the cloud infrastructure to be deployed at particular locations — are selected from several possible options. This process gradually narrows down the candidate configurations. If the selection is inappropriate, this process goes back to making the requirements more concrete and the selection is redone. The fewer times that this process is redone, then the faster the design can be completed. Therefore, the selections made at each step of the operation where the requirements are refined need to be determined as accurately as possible. As a result, the fulfillment of non-functional requirements — such as performance, availability, and security — is evaluated and utilized as a basis for decision making. In addition, AI and machine learning (ML) are utilized to increase the accuracy of decisions.

3.2 Addressing security requirements in automated design

As mentioned in section 3.1, when selecting a configuration during design, its security is evaluated. To evaluate security, the technology used in conventional automated design verifies whether or not there is an attack path. An attack path is a series of actions for a potential attacker to execute an attack. For example, to carry out an attack to destroy data, for example, the attacker would first attempt an unauthorized login, then acquire authorization, and finally execute a command to delete files. Here the attack path is composed of these three actions. If an attack path is found, it means that and attack can actually be carried out, so the configuration is determined as being insecure. In other words, checking whether or not there is an attack path is useful for security evaluation.

To determine the existence of an attack path, this technology uses threat models. Each threat model represents fragments of an attack path, for example, the requirement for authorization to execute a command to delete files. When designing a configuration plan, the threat models are connected with each other to attempt to generate attack paths, and then the existence of any attack paths are checked. In this way, the selection of a configuration plan that enables the existence of attack paths can be avoided, and a secure configuration plan can be created.

4. Application Example

Our development team in autonomous operation is actively working on applying this technology to 5G networks, specifically in applications that utilize the control units of 5G Core (5GC) networks and RANs as well as end-to-end networks. The following example describes an application of this technology in accordance with Open RAN (O-RAN)⁷⁾ specifications.

In O-RAN, operation and control are performed by a component called the RAN intelligent controller (RIC). The RIC is divided into non-real time and near-real time components. The technology used in operation falls into the category of the non-real time RIC.

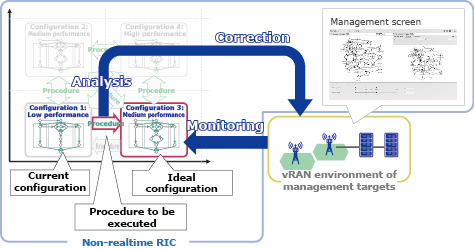

As an example of a specific operational flow, this technology monitors the number of users using a RAN belonging to a specific user group and adjusts the amount of resources allocated to the central unit (CU), which is a major functional module, in accordance with increases or decreases in the number of users. Fig. 4 shows how operations are automated based on vRAN requirements.

A series of control actions follows the operational plan described in section 2, and the operational plan is automatically generated from the requirements. Therefore, even if the circumstances or operational conditions change, such as with the addition of new user groups or the installation of new equipment, the operational plan can still be automatically updated, enabling a quick transition to routine operations.

5. Conclusion

In this paper, we discuss autonomous operations mainly from a technical point of view. Adoption of autonomous operations is now a global trend, and we believe that it will continue to attract more and more attention in the future.

Going forward, we will continue our R&D with the aim of achieving complete automation of all networks by working on reducing the time required to generate operational plans, improving usability, and meeting the requirements for autonomous operation of the entire end-to-end network.

6. Acknowledgments

The results introduced in this paper were partially obtained from the commissioned research (No.04801) by National Institute of Information and Communications Technology (NICT) , Japan.
